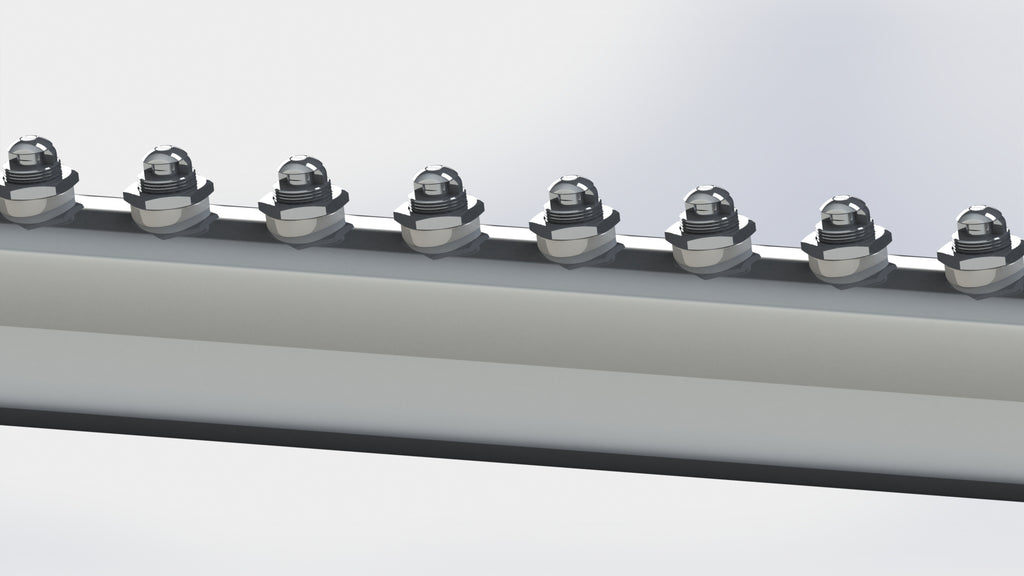

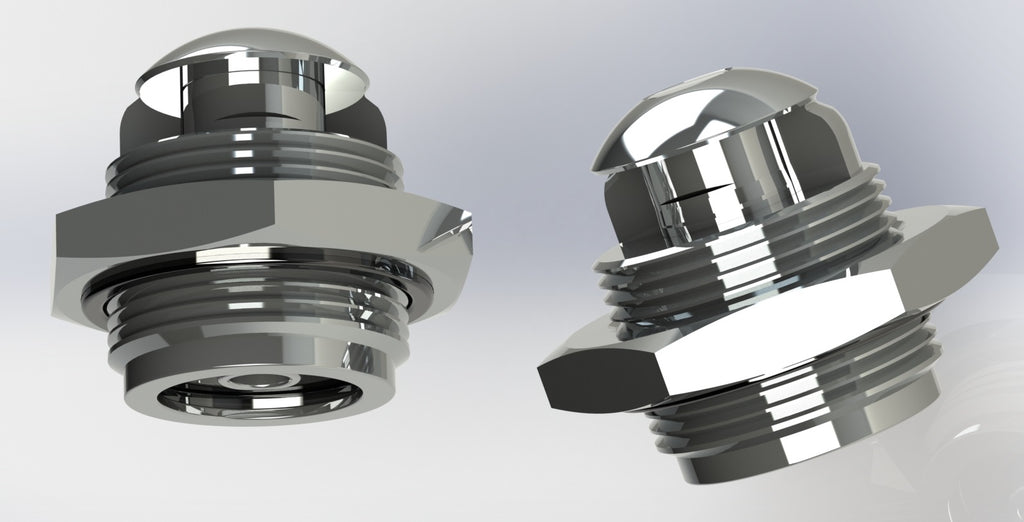

Self Cleaning Spring Purge Nozzles

Reliable spray performance in high-solids and white-water environments

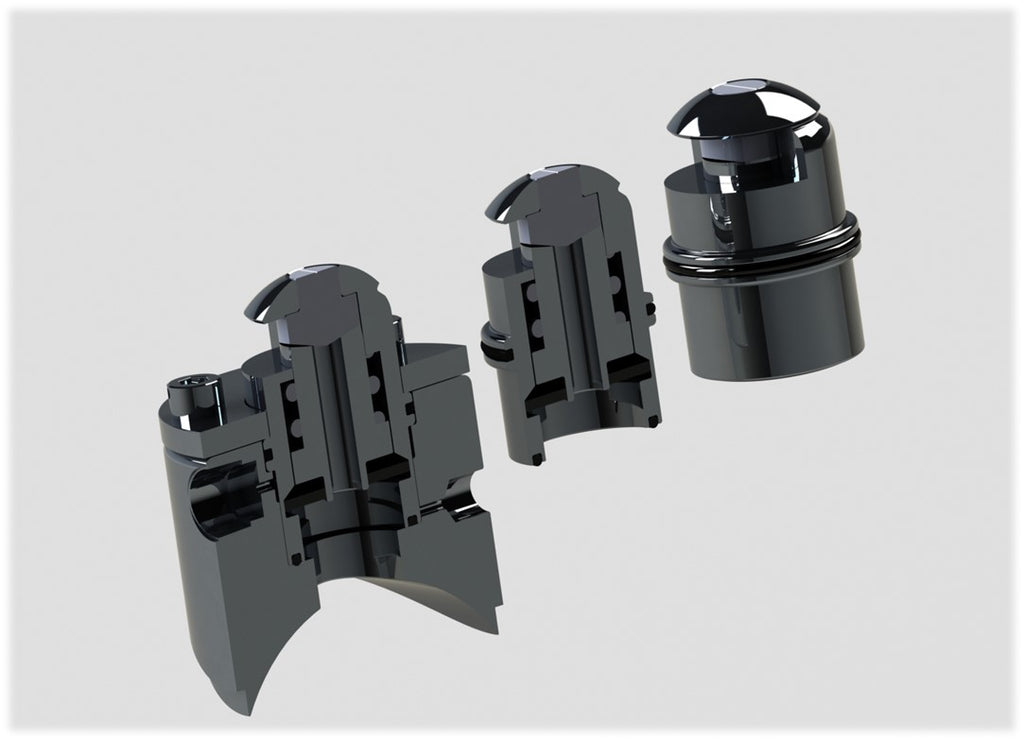

Self-Cleaning Spring Purge Nozzles are engineered for shower systems operating with suspended solids or contaminated process water. An internal spring-loaded piston automatically purges debris from the orifice during pressure drops, helping prevent plugging, maintain consistent spray patterns, and reduce unplanned maintenance.

Designed For

• Save-all showers

• Knock-off showers

• White water and high-solids process water systems

Key Benefits

• Automatic self-cleaning operation – Spring-loaded piston retracts when line pressure is reduced, clearing debris from the nozzle orifice

• Ideal for high-solids water – Reliable performance in white water and contaminated shower systems

• Consistent spray distribution – Maintains uniform coverage even in challenging operating conditions

• Reduced downtime & maintenance – Minimizes manual cleaning and nozzle replacement

• Compact, machine-friendly design – Fits easily within tight paper machine clearances

• Fast installation & alignment – Simple setup for new installs or retrofits

Technical Specifications

• Flow range: 0.008 – 12.6 GPM (0.03 – 47.7 LPM)

• Operating pressure: Up to 250 PSI (17 bar)

• Actuation options: Available with low or high actuator pressures

• Threaded & Insert options:  Available in multiple thread sizes and conversion kits from air purge to spring systems.

Typical Industries

• Pulp & paper

• Recycling and water reuse

• Industrial process showers

📞 Need help selecting the right configuration?
Contact Southern Paper Group to match flow rate, pressure, and actuation requirements for your application—or request a quote today.
