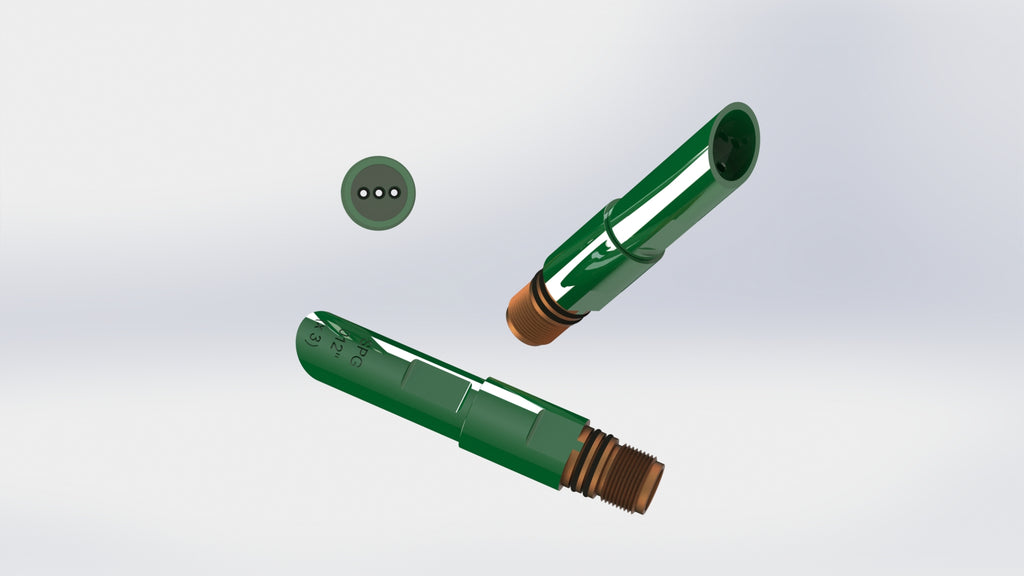

Trim Squirts (Stainless & Teflon® Coated)

Ruby Trim Squirt Nozzles

Overview

Ruby Trim Squirt Nozzles are precision-engineered to deliver clean, stable, and repeatable trim cutting performance in demanding paper, tissue, and converting applications. Developed through a comprehensive design and validation program, these nozzles combine robust stainless steel construction with ultra-low-friction ruby orifices to ensure long service life, consistent streams, and exceptional cut quality.

Available Configurations

• Single Stream

• Double Stream – 10° angle

• Parallel Stream

• Double Stream with mixed orifice sizes (optional)

Key Features & Benefits

• Precision ruby orifices provide excellent wear resistance, low friction, and highly stable streams

• Stainless steel nozzle bodies offer superior durability and corrosion resistance in wet environments

• Rotating PTFE (Teflon®) shield or integral stainless steel shield protects the stream from moisture and debris buildup

• Angled shield design directs water drips toward the waste side of the trim cut, helping maintain a clean, consistent edge

• Wide range of available orifice sizes to match trim width, basis weight, and operating pressure requirements

• Proven performance through extensive testing to ensure reliability and high-quality cutting results

Typical Applications

• Paper and tissue trim cutting

• Board and packaging lines

• Converting and finishing operations
