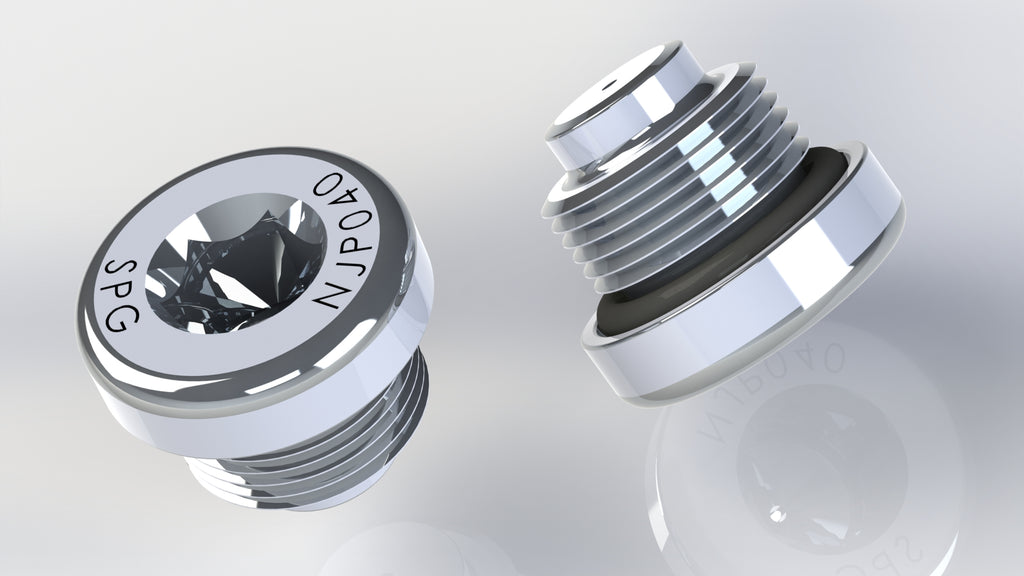

NJP High-Pressure Needle Jet Nozzles

NJP 9/16" 24 thread 316SS nozzles with custom orifice sizes.

NJP High-Pressure Needle Jet nozzles are engineered to deliver powerful, solid-stream sprays for demanding cleaning applications in paper and industrial process environments. Precision-machined for tight flow control, NJP nozzles provide consistent, high-energy impact to effectively remove contaminants while maintaining reliable performance at elevated pressures.

Ideal Applications

• Forming Fabric and Press Fabric Cleaning

• Suction Roll Cleaning

• Oscillating and fixed shower systems

Key Features & Benefits

• High-performance solid stream spray delivers concentrated cleaning power

• Precision-machined construction ensures accurate flow control and repeatable performance

• Wide compatibility with oscillating and stationary shower assemblies

• Extended tube and back-end options draw higher-quality water into the nozzle, reducing turbulence and improving spray consistency

• Broad flow range from 0.032 to 11.0 GPM (0.12 to 41.6 LPM)

• High-pressure capability up to 1,000 PSI (70 bar)

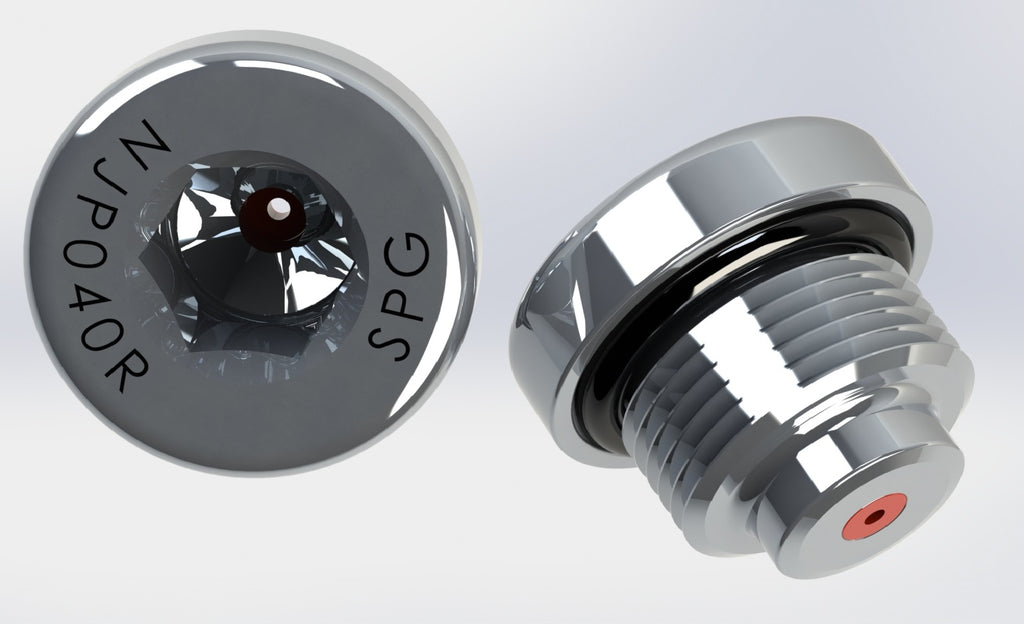

• Orifice types available:  Stainless, Cermet, & Ruby

Typical Industries

• Pulp & paper

• Tissue and packaging

• Industrial washing systems
